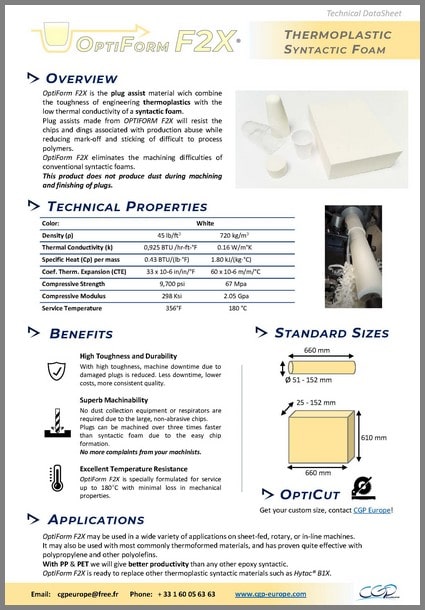

OPTIFORM® F2X
LE GRADE STANDARD
OptiForm® F2X est la première formulation de mousse syntactique thermoplastique développée par CGP Europe dans les années 2013.
C’est un très bon produit économique pour le thermoformage du PS, du PVC ou du PET.

USINAGE SANS POUSSIÈRE

RECYCLABLE

Color | White |
---|---|
Density | 720 kg/m3 |
Thermal Conductivity | 0,17 W/m.K |
CTE | 66 .10-6 m/m/°C |
Compressive Strengh | 67 MPa |
Service Temperature | 180°C |
Flexural Toughness | 67,3 KPa |
Standard Stock Sizes | Made to order | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diameter or Thickness | inch | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 12 |
mm | 25 | 38 | 51 | 64 | 76 | 89 | 102 | 114 | 127 | 140 | 152 | 178 | 203 | 228 | 254 | 305 | |
Rods (660 mm) | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
Sheets (610 x 660mm) | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
*Other custom sizes are possible on request |
F2X | SLX | FXT | B2X | |
---|---|---|---|---|
MACHINABILITY | ||||
Dust Free | ||||
Smoothness from machining | ||||
Polishing | ||||
Insert & Threading | ||||
THERMOFORMING APPLICATION | ||||
Material distribution | ||||
Resistance to abuse | ||||
Multilayer | ||||
Deep draw | ||||
Part Clarity | ||||
Plug Durability |
